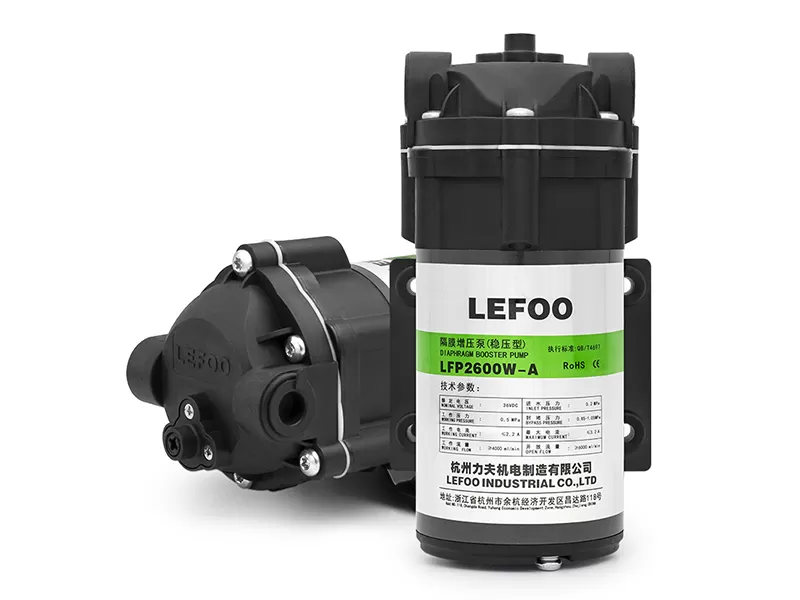

| Modèle | LFP1600W-A | LFP1800J | LFP1800J-V | LFP2600W-A | LFP2800J | LFP2800J-V | LFP2800J-FD |
| Tension | 24V DC | 36V DC | |||||
| Pression d'eau d'admission | 0.2MPa | 0.2MPa | |||||
| Pression de travail | 0.7MPa | 0.7MPa | |||||
| Courant de travail | ≤ 4.5A | ≤ 3.8A | ≤ 2.6A | ≤ 2.6A | ≤ 2.7A | ||
| Débit de travail | ≥ 3500 ml/min | ≥ 3500 ml/min | ≥ 3500 ml/min | ≥ 3500 ml/min | |||
| Débit ouvert | ≥ 6000 ml/min | ≥ 4500 ml/min | ≥ 6000 ml/min | ≥ 4500 ml/min | |||
| Pression de dérivation | 0.85-1.05MPa | 0.9-1.2MPa | 1.0-1.2MPa | 0.8-1.05MPa | 0.9-1.2MPa | 1.0-1.2MPa | 0.9-1.1MPa |
| Courant maximum | ≤ 5.0A | ≤ 4.5A | ≤ 4,7A | ≤ 3.2A | ≤ 3.2A | ≤ 3.3A | ≤ 3.3A |
