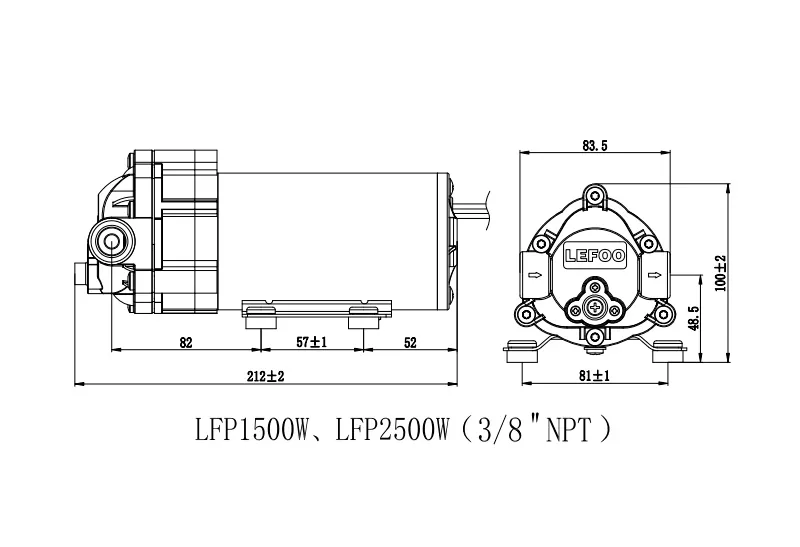

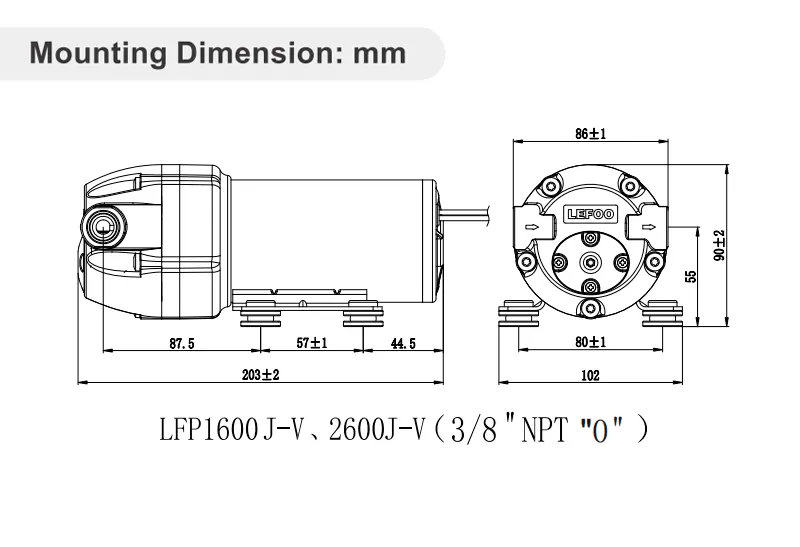

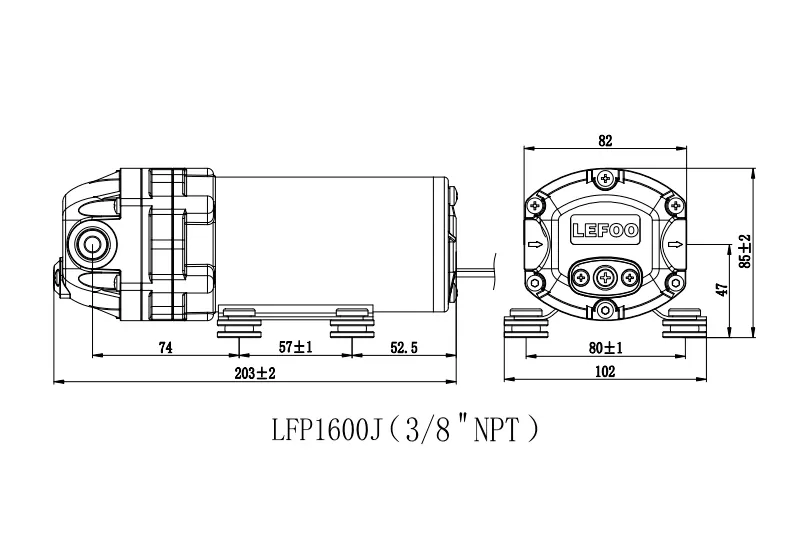

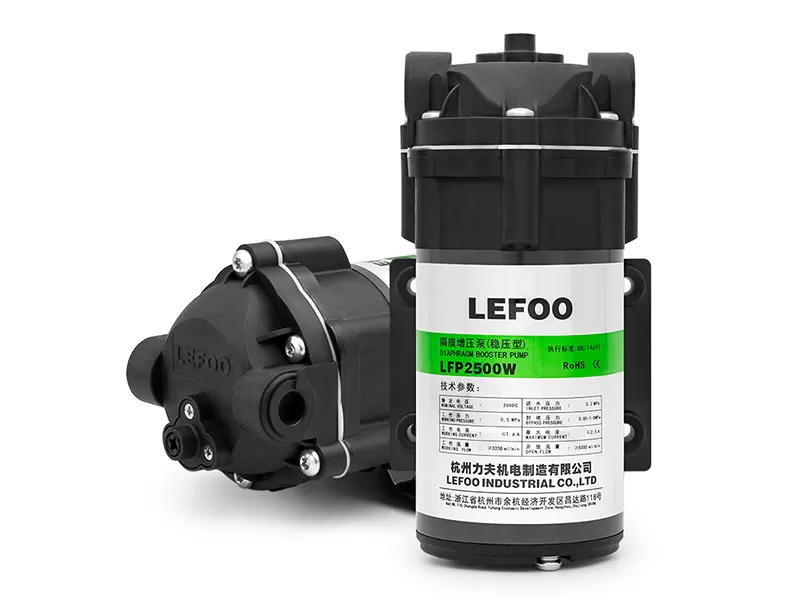

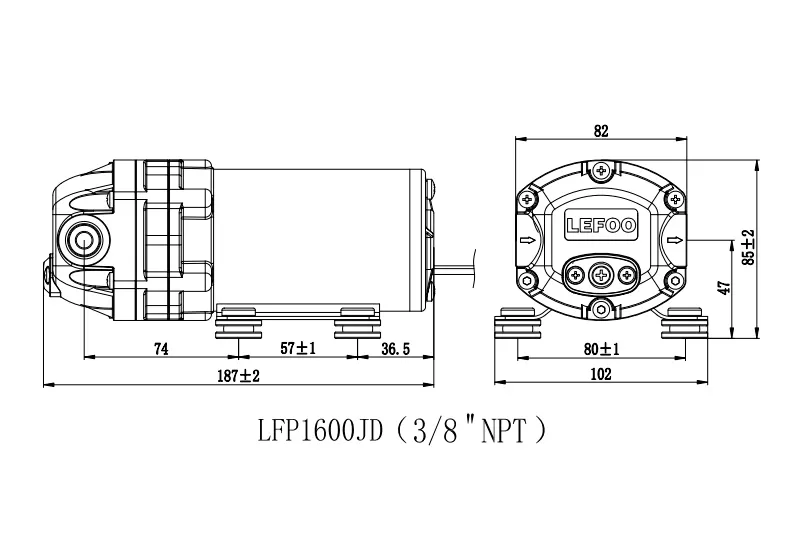

| Modèle | LFP1500W | LFP1600J-V | LFP1600J | LFP1600JD | LFP2500W | LFP2600J-V | ||
| Tension | 24V DC | 36V DC | ||||||
| Pression d'eau d'admission | 0.2MPa | 0.2MPa | ||||||
| Pression de travail | 0.5MPa | 0.7MPa | 0.5MPa | 0.5MPa | 0.7MPa | 0.5MPa | ||
| Courant de travail | ≤ 3.2A | ≤ 3.7A | ≤ 3.0A | ≤ 2.8A | ≤ 1.6A | ≤ 2.0A | ≤ 1.8A | |
| Débit de travail | ≥ 3250 ml/min | ≥ 2800 ml/min | ≥ 3200 ml/min | ≥ 3250 ml/min | ≥ 2800 ml/min | ≥ 3200 ml/min | ||
| Débit ouvert | ≥ 5000 ml/min | ≥ 4000 ml/min | ≥ 4500 ml/min | ≥ 5000 ml/min | ≥ 4000 ml/min | |||
| Pression de dérivation | 0.85-1.05MPa | 0.9-1.1MPa | 0.85-1.05MPa | 0.85-1.05MPa | 0.9-1.1MPa | |||
| Courant maximum | ≤ 4.2A | ≤ 4.0A | ≤ 2.5A | |||||
