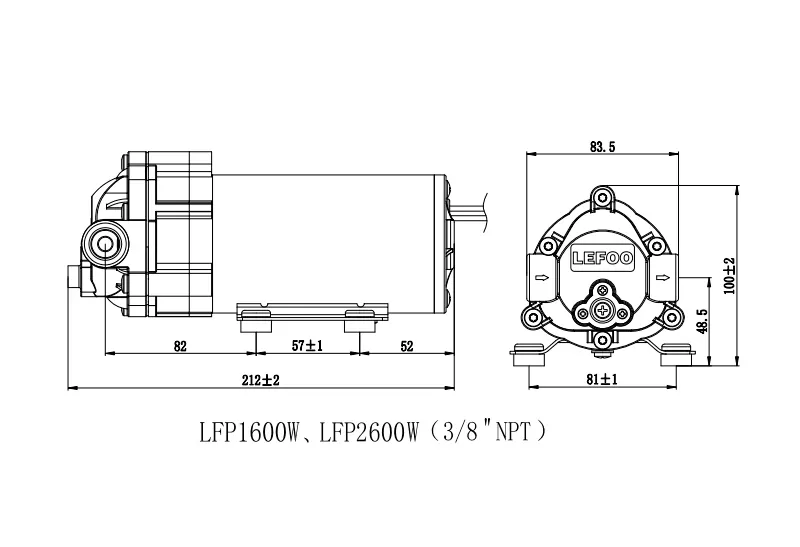

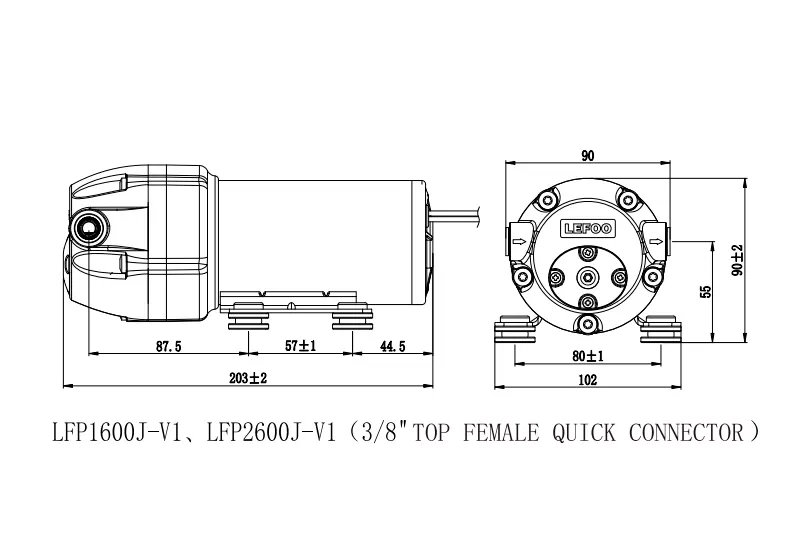

| Modèle | LFP1600J-A | LFP1600J-V1 | LFP1600W | LFP2600J-V1 | LFP2600J-A | LFP2600W | ||
| Tension | 24V DC | 36V DC | ||||||
| Pression d'eau d'admission | 0.2MPa | 0.2MPa | ||||||
| Pression de travail | 0.7MPa | 0.5MPa | 0.7MPa | 0.7MPa | 0.5MPa | 0.7MPa | ||
| Courant de travail | ≤ 3.3A | ≤ 3.0A | ≤ 4.0A | ≤ 2.2A | ≤ 1.9A | ≤ 2.2A | ||
| Débit de travail | ≥ 3200 ml/min | ≥ 3600 ml/min | ≥ 3200 ml/min | ≥ 3200 ml/min | ≥ 3600 ml/min | ≥ 3200 ml/min | ||
| Débit ouvert | ≥ 4500 ml/min | ≥ 6000 ml/min | ≥ 4500 ml/min | ≥ 6000 ml/min | ||||
| Pression de dérivation | 0.85-1.05MPa | 1.0-1.2MPa | 0.85-1.05MPa | 1.0-1.2MPa | 0.85-1.05MPa | 0.85-1.05MPa | ||
| Courant maximum | ≤ 4.3A | ≤ 4.5A | ≤ 3.0A | ≤ 2.5A | ≤ 2.8A | |||
